Model Number: TSC-3R1

Touch Switch Controller

Voltage 220-240V
Loading: Max. 500W Incandescent (Resistive load), 200W Fluorescent (Inductive load)
Operation: On & Off by finger touch

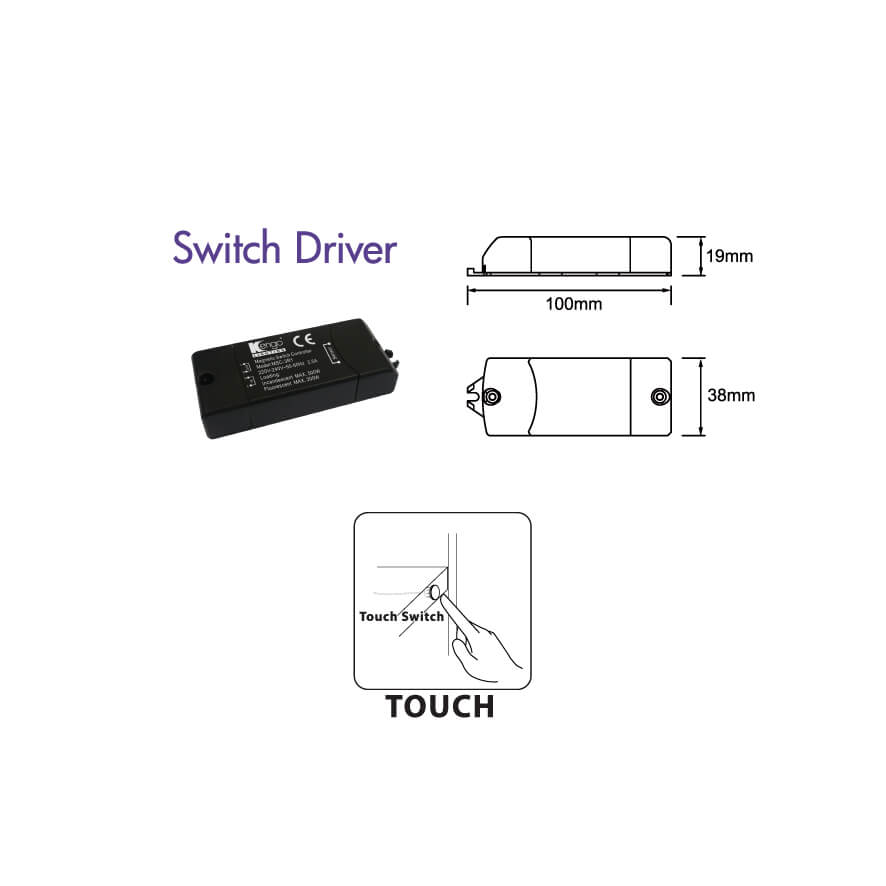

Switch Driver Included
Polish chrome switch
Construction: PA, PBT

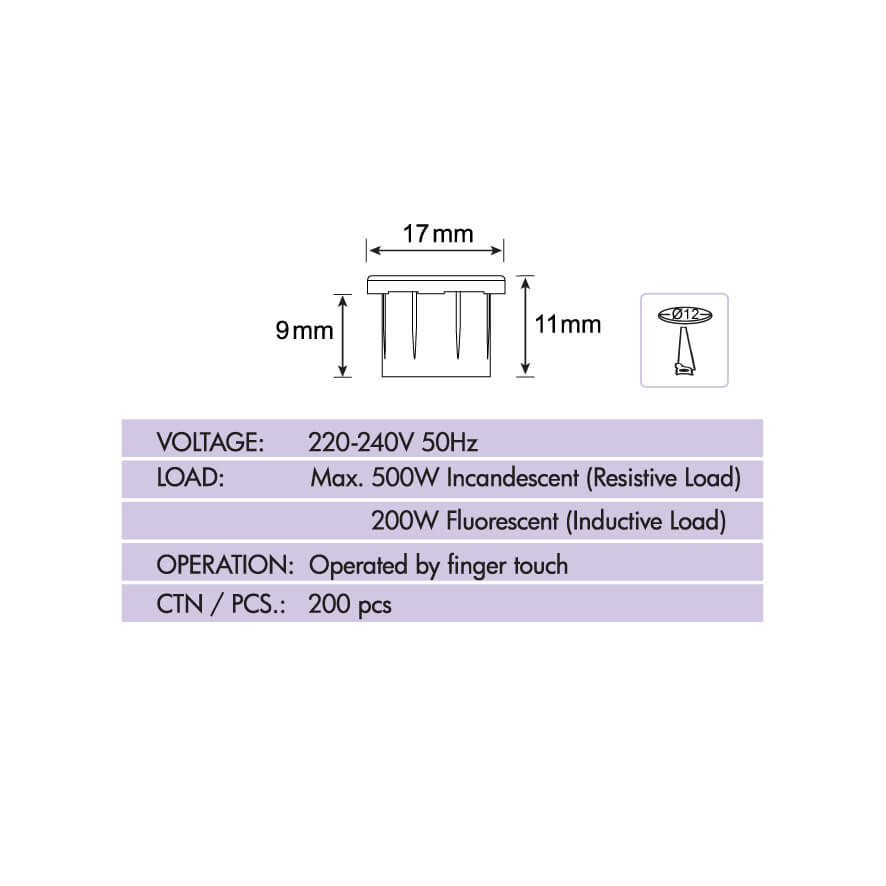

Dimension: 17mm dia. x 11mm (H)

Description

Electronic touch sensor switch
Designed for furniture and various applications
Constructed from high quality material and components
Compact design for all standard cabinets
Suitable for install on the edge and surface of min. 14mm thickness wooden board
Instruction manual for easy installation
