Model Number: E-CP04/BK

18W CCT ADJUSTABLE PIR LED PANEL LAMP

Can identify day and night/ OFF sensor:
The consumer can adjust working state in different ambient light.

Adjustable Time Delay and Time-Delay is added continually:
The length of time delay could be set according to the customers’ requirement, the Min. time is 30sec, Max. time is 120sec.

CCT Adjustable:
The colour temperature may be set by means of a switch on the rear of the luminaire.

SKU: E-CP04/BK Categories: , , , ,

Description

Input : 110-240V~ 50/60Hz
Wattage : 18W
CCT : 3000K±300K/4000K/6000K±500K(adjustable)
Temperature: -20~+40℃

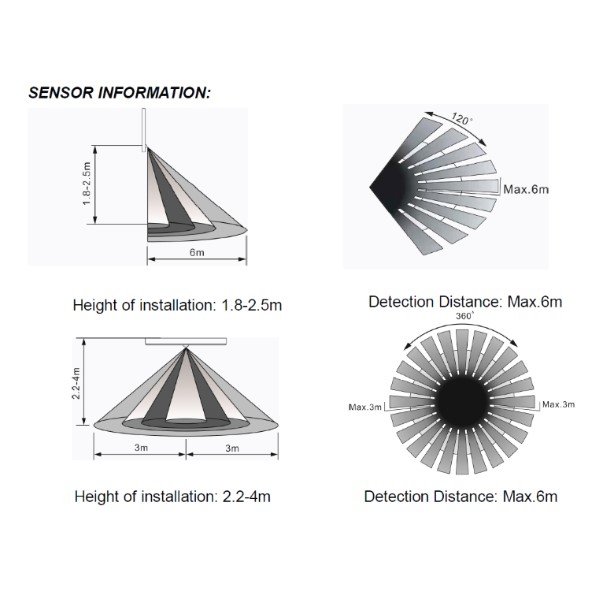

Detection Range : 120°/360°
Detection Distance : max.6m(<24℃)
Detection Moving Speed: 0.6-1.5m/s
Ambient Light : <10/2000LUX (adjustable)
OFF sensor
Time Delay:30sec/120sec
Working Humidity: <93%RH
Casing colour: Black
Installation Height: 2.2-4m Ceiling Mount / 1.8-2.5m Wall Mount
Comly with CE and UKCA standards
